NCT Programming Drilling Circle Part with G81 G16

NCT program example to show how to drill a part of a circle with G81 drilling cycle and G15 G16 Polar Coordinate Commands.

G Codes

G CodeFunction
G15polar coordinate command cancel
G16polar coordinate command
G81drilling, spot boring cycle

NCT Program Example

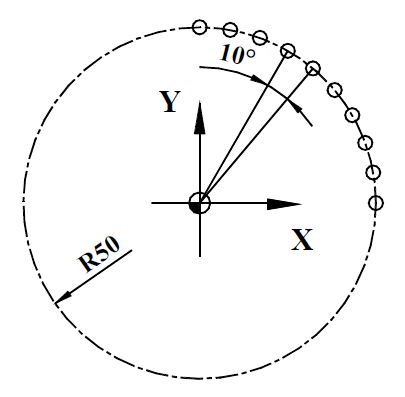

NCT Programming Drilling Circle Part with G81 G16

%O7074(7.4)
N100 T1
N110 G54 G0 X0 Y0
N120 G43 Z50 H1
N130 S1000 M3 M8
N140 G16 G0 X50 Y-10
N150 G81 X50 YI10 R2 Z-10 L10
N160 G80 G15
N170 G0 Z100
N180 M30
%
