Osai GTL Programming Example for cnc machinists who work on cnc machines with Osai 10 Series cnc controls.

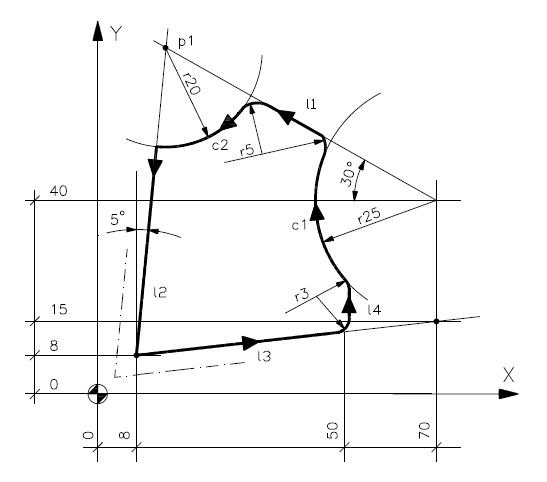

N1 (DIS,"EXAMPLE GTL") N2 l1=X70Y40,a150 N3 l2=X8Y8,a-95 N4 p1=l1,l2 N5 l3=X8Y8,X70Y15 N6 l4=X50Y,a90 N7 c1=I70J40 r-25 N8 c2=p1,r-20 N9 F250 S800 T1.1 M6M3 N10 GXY N11 Z-10 N12 G21G42l2 N13 l3 N14 r3 N15 l4 N16 r3 N17 c1 N18 r5 N19 l1 N20 r5 N21 c2s2 N22 l2 N24 G20 G40 l3 N25 GZ2 N23 XY M30
Osai 10 Series Programming example using Osai GTL (high level programming language). Osai GTL Programming Example N1 (DIS,”EXAMPLE GTL”) N2 l1=X-50Y10,X30Y50 N3 l2=X30Y50,X70Y10 N4 l3=X70Y0,a-90 N5 l4=X=Y-20,a180 N6 l5=X10Y-20,X0Y0 N7…
Osai 10 Series program example using Osai GTL (High Level Geometric Programming Language). Osai High Level Geometric Programming (GTL) Example Profile repetitions executed with 2 passes N1 (DIS,”GTL EXAMPLE WITH…
Osai 10 Series allows the programmers to make cnc programs using standard programming language (G1-G2-G3) or GTL, a high level programming language (GTL). Here is a complete Osai GTL programming…
ContentsOsai GTL (HIGH LEVEL GEOMETRIC PROGRAMMING)Geometric ElementsProgrammingExamplesDefinition of PointsDefinition of Straight LinesDefinition of Circles Osai GTL (HIGH LEVEL GEOMETRIC PROGRAMMING) Osai 10 Series CNC systems permit to program a geometric…
This Osai 10 Series CNC Program Example shows how to use Plane Rotation (ROT) with Repeat (RPT) and Parametric Programming. Osai 10 Series CNC Program Example (UGS, X, -100, 100,…
ContentsOsai CGS (CLG) CommandProgramming Osai CGS (CLG) Command Osai CGS command clears the profile from the screen leaving the system of coordinates. Programming (CGS)
ContentsOsai DGS (DCG) CommandProgramming Osai DGS (DCG) Command Osai DGS command disables the graphic display, deletes the displayed profile, and removes the system of coordinates from the screen. After using…
